Countersunk External Tooth Serrated Conical Lock Washers

Countersunk External Tooth Serrated Conical Lock Washers pabrik Xiaoguo® duwe wangun recessed built-in. Nalika dilebokake ing, padha njagong tingkat karo utawa ngisor lumahing bagean, supaya kabeh pasuryan njaba ends munggah Gamelan lan warata.

Kirim Pitakonan

Deskripsi Produk

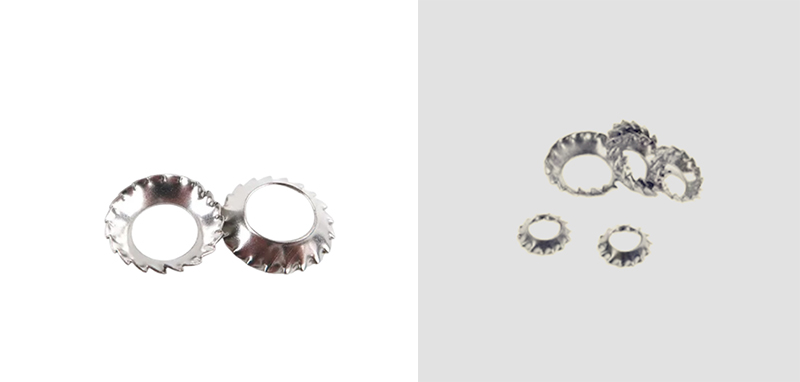

Countersunk External Tooth Serrated Conical Lock Washers iki minangka cincin pengunci sing bentuke kerucut kanthi profil cekung lan untu ing pinggir njaba. Wangun sunken ngijini padha pas menyang bolongan soyo tambah recessed, supaya sirah meneng rampung flush karo utawa ngisor lumahing bagean. Nalika sampeyan ngencengi meneng, bagean conthong nyurung bali karo meksa spring anteng, lan untu njaba cokotan menyang materi dhasar. Sing njaga pengikat supaya ora ngeculake nalika barang kedher utawa dipindhah.

Guide Instalasi

Punika pandhuan instalasi kanggo Countersunk External Tooth Serrated Conical Lock Washers. Sampeyan bisa nggunakake minangka referensi kanggo operasi.

（1）Spesifikasi Pilihan

Cocog karo diametere njero lan njaba Countersunk External Tooth Serrated Conical Lock Washers kanthi spesifikasi sekrup countersunk. Spesifikasi kudu konsisten supaya ora gedhe banget utawa cilik banget, sing bisa nyebabake efek pas lan anti-loosening.

(2) Arah instalasi (titik utama)

Lumahing cembung kerucut + lumahing untu njaba madhep sirah sekrup

Permukaan mburi sing rata kudu dipasang kanthi rapet ing permukaan lembaran logam

Aja nginstal ing arah mbalikke. Nginstal ing arah mbalikke bakal kelangan elastis pra-tightening lan waos lumahing ngunci fungsi.

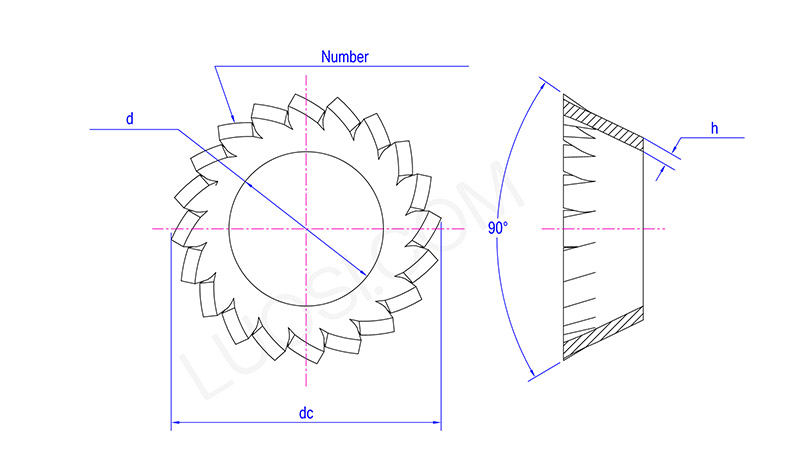

Countersunk External Tooth Serrated Conical Lock Washers

Mon	φ2.5	φ3	φ3.5	φ4	φ5	φ6	φ8	φ10	φ12	φ14	φ 16
d min	2.7	3.2	3.7	4.3	5.3	6.4	8.4	10.5	13	15	17
d maks	2.84	3.38	3.88	4.48	5.48	6.62	8.62	10.77	13.27	15.27	17.27
dc	5.1	6	7	8	9.8	11.8	15.3	19	23	26.2	30.2
h	0.2	0.2	0.25	0.25	0.3	0.4	0.4	0.5	0.5	0.6	0.6
Jumlah Jumlah untu min	10	12	12	14	14	16	18	20	26	28	30

(3) Selarasake mesin cuci kanthi bener

Selehake Countersunk External Tooth Serrated Conical Lock Washers menyang sekrup countersunk, banjur lebokake kabeh set menyang bolongan sing dipasang. Taper njero mesin cuci bakal nyelarasake dhewe supaya pas karo sudut kepala sekrup.

(4) Kenceng tangan dhisik

Miwiti kanthi ngowahi sekrup kanthi tangan. Tansah warata ing mesin cuci lan priksa manawa lurus - ora miring.

(5) Kenceng kanggo torsi standar

Gunakake kunci pas lan kenceng menyang spek torsi biasa. Remet iku mung cukup kanggo flatten conthong sethitik supaya menehi sawetara spring tension, lan supaya untu njaba cokotan alon-alon menyang lumahing.

(6) Saperangan bab sing kudu diwaspadai

Aja kenceng - Kelet ing torsi sing disaranake. Aja nggunakake kunci impact kanggo palu.

Aja tumpukan washers - Mung nggunakake siji saben meneng. Numpuk mau nggawe tekanan sing ora rata, mlengkung mesin cuci, lan mateni kemampuan ngunci.
