      Torsi Hexagonal Bolt
      • Torsi Hexagonal BoltTorsi Hexagonal Bolt
      • Torsi Hexagonal BoltTorsi Hexagonal Bolt

      Torsi Hexagonal Bolt

      Dheweke mbahas pungkasan ing torsi Hexagonal Bolt sing duwe desain root sing bentuke busur, bisa nahan torsi sing luwih gedhe.

      Kirim Pitakonan

      Deskripsi Produk

      Torque Hexagonal Bolks Hexagonal Super umum ing konstruksi, yaiku sing nyekel bingkai baja, kreteg, lan bangunan prefab bebarengan.

      Introduksi bahan produk

      Bolah materi: Bolt Hexagonal digawe saka prekara sing akeh kanggo kinerja, suwene suwene bisa, lan apa cocog karo lingkungan sing spesifik.

      Sesi Q & A

      Standar Internasional sing sampeyan HEX bolts dhuwur torsi cocog karo? Apa tingkat intensitas sing kasedhiya kanggo pilihan?

      Hex bolts dhuwur-dhuwur ketemu standar internasional sing umum kaya ISO 4014, ISO 4017, Din 933, Din 931, lan ASTM A307.

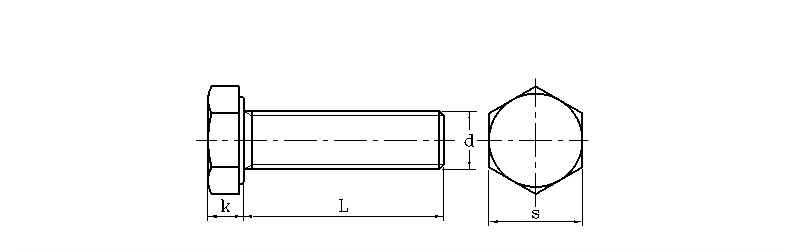

      High Torque Hexagonal bolt6


      d S k d Thread
      Max min Max min Max min
      M3 5.32 5.5 1.87 2.12 2.87 2.98 0.5
      M4 6.78 7 2.67 2.92 3.83 3.98 0.7
      M5 7.78 8 3.35 3.65 4.82 4.97 0.8
      M6 9.78 10 3.85 4.14 5.79 5.97 1
      M8 12.73 13 5.15 5.45 7.76 7.97 1.25
      M10 15.73 16 6.22 6.58 9.73 9.96 1.5
      M12 17.73 18 7.32 7.68 11.7 11.96 1.75
      M14 20.67 21 8.62 8.98 13.68 13.96 2
      M16 23.67 24 9.82 10.18 15.68 15.96 2
      M18 26.67 27 11.28 11.7 17.62 17.95 2.5
      M20 29.67 30 12.28 12.71 19.62 19.95 2.5
